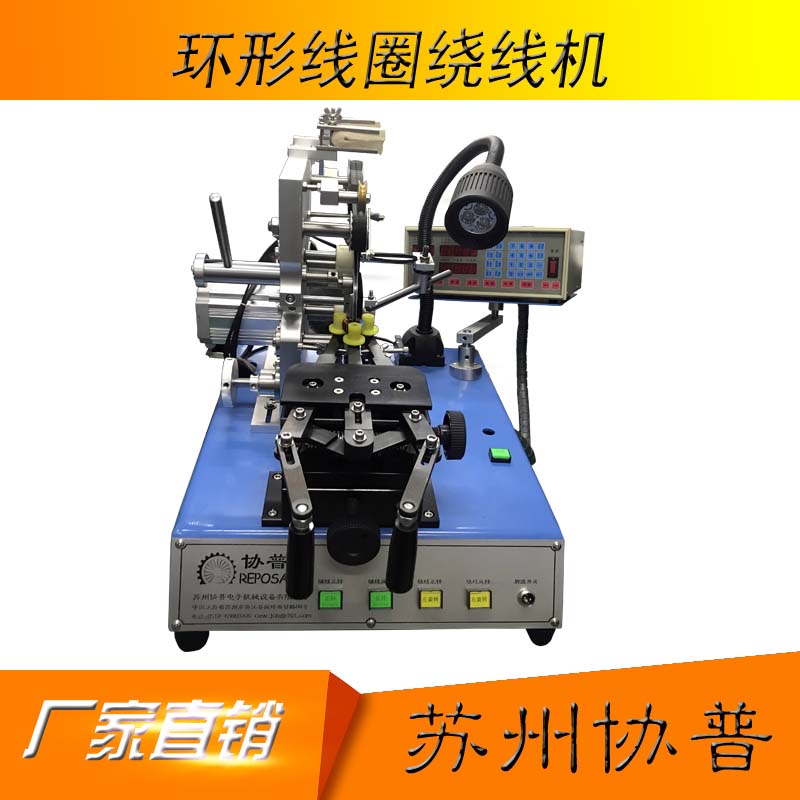

Toroidal coil winding machine sp-600b
- Brand: 协普/REPOSAL
- Product Code: sp-600b
- Availability: In Stock
- Ex Tax: 登录以查看价格
Toroidal coil winding machine sp-600b
Toroidal coil winding machine sp-600b Features:
1.The amount of wire storage is automatically measured by the internal sensor of the precision motor, and the accuracy and life are not affected by the dust and the environment.
2. For multi-layer toroidal coils, it can automatically calculate the change of line spacing between layers
3. Self-powered memory function, even after a long time after power off, it can be restored to the power off state.
4. Comes with distributed winding method (specify how many turns a specific product turns every week, automatically calculate the pitch) and wire diameter control (according to the set wire diameter), you can switch arbitrarily.
5. Up to 1000 sets of process data programs, variable line spacing, multi-section winding can be set according to needs (multiple independent control of speed, number of turns and direction)
6. The winding speed, winding turns and various working states are displayed during winding.
7. The Japanese high-precision photoelectric sensor is used to detect the number of windings, with high sensitivity and accurate counting.
8. Accuracy of the winding and winding mechanism of the storage, low runout, low noise, flexible control and long service life.
Model: SP-600B 绕线机" target="_blank">(video)
Winding method: belt type
Maximum wire diameter: 1.0mm
Minimum wire diameter: 0.2mm
Maximum finished outer diameter: 63.5mm
Minimum finished outer diameter: 9mm
Minimum finished inner diameter: 8mm
Maximum finished height: 38mm
Winding motor: DC brushless 600W
Power supply: 220V 50 / 60HZ
Machine size: 50 * 60 * 107
Machine weight: 47kg
