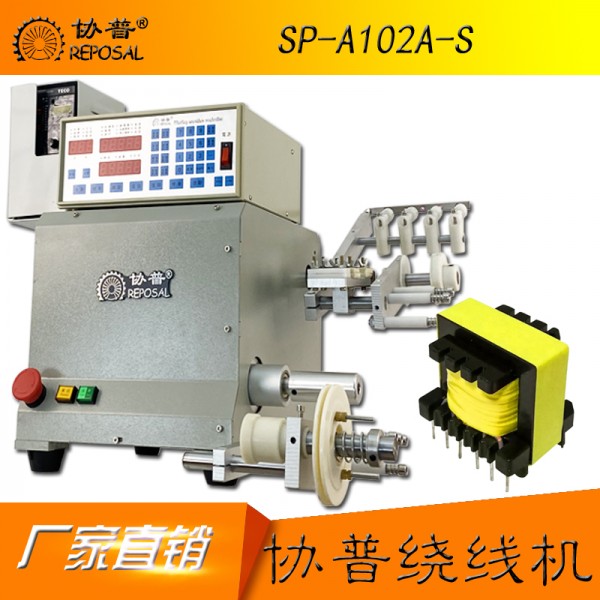

High frequency transformer winding machine

       Features of high-frequency transformer winding machine: usually a high-frequency transformer product has several different windings, several different specifications of enameled wire, at the same time, there is an insulating tape between the winding and the winding, and a barrier tape is required on both sides of the skeleton. All windings, insulating tapes, and wall tapes do not have many turns, so they are not suitable for disassembly and installation to the next process after each process is completed, which will greatly increase the working hours, so a compact structure is required. Machine for winding multiple windings, multi-spec enameled wires, retaining wall tape and insulating tape in one clamping.

       The coils produced by the high-frequency transformer winding machine are compact in structure, small in size, and have an operation scheme that can complete multiple procedures at a time. According to the different sizes of high-frequency transformers, two different winding motors are configured, one is a brushless motor, the speed can be up to 6000 rpm, the winding shaft is directly installed on the motor shaft end, and the other is three-phase asynchronous The motor is driven by a transformer, and the characteristic is that the speed ratio can be changed through the belt to adapt to larger products.

        The pooling shaft is driven by a constant current circuit with a stepping motor, which improves the spooling speed and accuracy. And the use of a microcomputer controller makes data setting easy. The multi-inlet cable head can install up to four different enameled wires at the same time. The wire arrangement is increased from a single head to two to four heads, that is, a maximum of four coils can be wound at a time.

        At the same time, multiple wires (up to 4) are used for parallel winding, and a radial compression mechanism is added; the tension of each pay-off reel is independently controlled, so that the winding wires are neatly arranged, the turns are tightly uniform, and the current density distribution is uniform. At the same time, it is equipped with an end insulation unwinding mechanism and a wire tensioning mechanism. The controller can be preset with a variety of parameters, which can complete the winding of the coil at one time.
