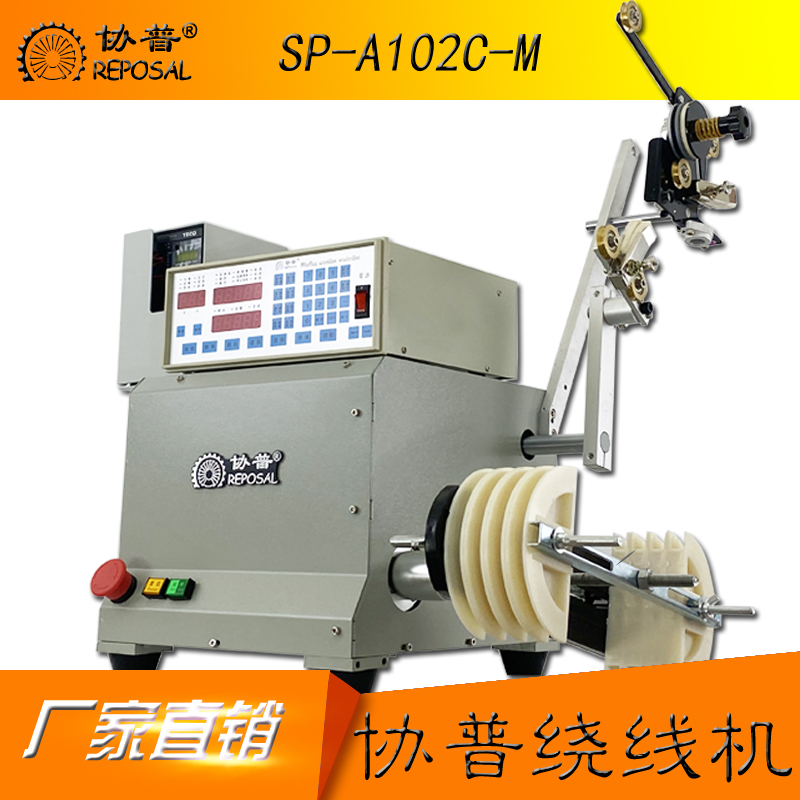

CNC Winding machine SP-A102C-M

Tags: Winding machine, CNC winding machine, transformer winding machine, high frequency transformer winding machine, power transformer winding machine, CNC winding machine, automatic winding machine, automatic winding machine

winding machine Features:




      Widely used in winding power transformers, high-frequency inductors, filters, general small parallel coils and other products.

             The control part of the winding machine adopts the special controller of the precision winding machine, and cooperates with high-quality motors, bearings, frequency converters, etc., so that the quality is guaranteed.

The winding machine's application function design is mature, the logic is clear, the winding function is complete, it has various auxiliary functions during the winding process, and it is simple to operate, it will not be erased when the power is turned off, there is a manual cable counting follow function, and the cable ends are automatically Deceleration function, the speed of the wire rod can be set.

  According to the specific requirements of the customer, the controller function can be designed to expand the input and output points (paid service).

  With power-off memory function, the power is suddenly cut off during the winding process, and the current state, parameters can be recorded and saved. After the power is turned on, the product will continue to be wound to reduce the waste of raw materials and working hours.

  Single-chip single-chip microprocessor design. Powerful, small size, strong anti-interference ability.

   Winding process data can save 999 groups, each group of process data can set different starting point, width, wire diameter, wire direction and winding direction, and cross-slot winding action.

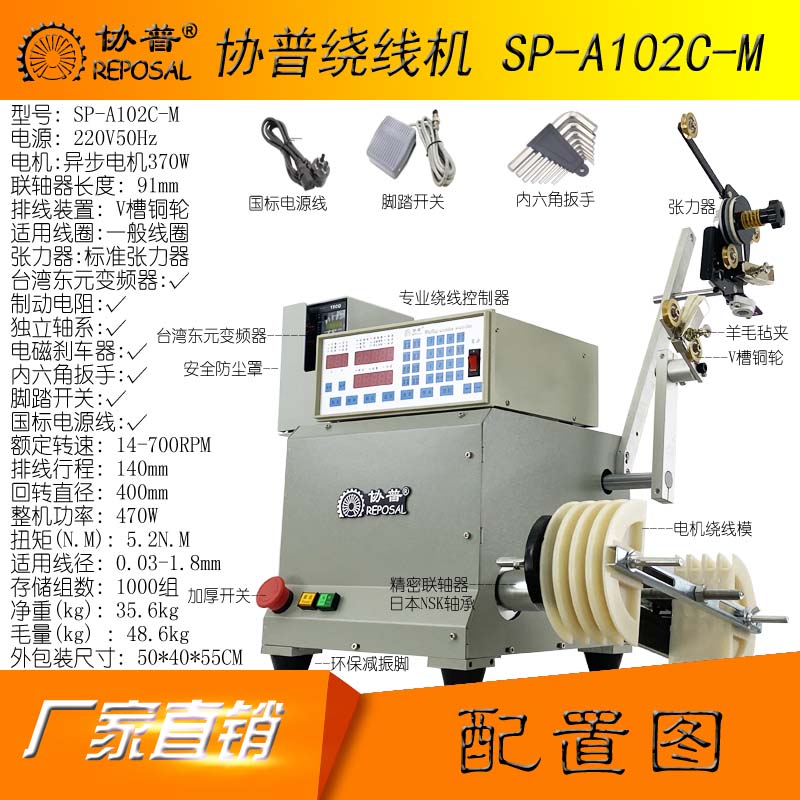

winding machine Specifications: SP-A102C-M

        Model SP-A102C-M

        Power supply 220V 50Hz

        Motor asynchronous motor 370W

        Coupling length 91mm

        Wire laying device V-groove copper wheel

        Suitable for general coils

        Tensioner Standard Tensioner

        The frequency converter has

        Braking resistor has

        Independent shaft system has

        Electromagnetic brake has

        Hexagonal wrench is available

        The foot switch has

        The power cord has

        Rated speed 14-700RPM

        Cable stroke 140mm

        Rotating diameter 400mm

        Whole machine power 470W

        Torque (N.M) 5.2N. M

        Applicable wire diameter 0.03-1.8mm

        1000 storage groups

        Net weight (kg) 35.6kg

        Gross weight (kg) 48.6kg

        Outer packaging size 50 * 40 * 55
