Toroidal coil winding machine operation video-Machine operation
Toroidal coil winding machine operation video
Below we introduce the structure of this toroidal coil winding machine. This part is the controller and this part is the clamping base. We control the clamping of the product by opening and closing the handle. This position is the storage ring. The enameled wire is stored on the storage ring first, and then wound around this product. This position is a manual winding handle. Turn this handle. The steel plate can be driven manually. The steel ring has an opening. This position is an opening. The opening is opened and closed by sliding the handle up and sliding to the left to open or close. . This position is called the crimping plate, and this position is called the baffle. After the line is removed, its degree of tightness is determined by the tension of the belt. The tension of the belt is adjusted by the tension adjustment knob. When adjusting the belt tension, first loosen And then rotate the handle. When rotating the handle, there is an idler wheel. When the idler wheel goes in, the tension of the belt will increase, so that the winding of the enameled wire will become tighter.
Let's take a look at how the enameled wire of this toroidal coil winding machine is installed. Put the spool vertically on the ground. This is wool felt. After the copper wheel, then the wool felt, and then the copper wheel in front, note that the degree of clamping of the wool felt can be adjusted by the horn nut, we will now do a demonstration by winding a product, this magnetic ring is picked up , And then the position of the steel ring opening is now here. The opening and closing handle is turned up. Then open to the left. Squeeze the handle, open this side, put the magnetic ring in, and then open and close the handle to reset, the copper wire bends a small groove, the groove is facing the outer line, press the start. Then cut it at the required position, pay special attention at this time, The thread passes from the right side of the steel ring from the right to the left, and then wraps around on the wheel. In this case, when he waits for the round, the power will be less. Then press start.

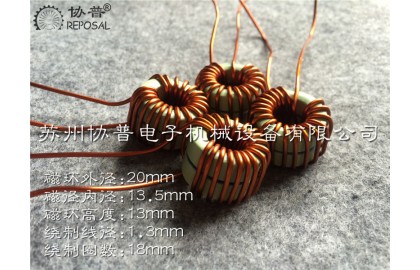

The winding of a loop coil is completed. There are three important points in the winding process. Let me emphasize first. First, the tension of the belt mentioned above is very important. If the thread is thin, the tension of our belt will break if it is too large. If the tension is too small, it won't be so smooth, it won't be so tight. Before the adjustment of the belt, the previous video said, loosen this knob, and then adjust the idler with another knob. The more the idler is toward the front, the greater the belt tension. Then the second is: the left and right position of the magnetic ring relative to the steel ring. When you see the enameled wire passing by, when you pass it, you need to align the center of the magnetic ring with the right side of the steel ring. ? It is adjusted by the adjustment handle on the clamping base, this is the second one. There is also the last one. In order to arrange the enameled wire relatively flat, the distance between the front and back of the magnetic ring should be as close as possible to the baffle of the ring coil winding machine. Where is his adjustment? It is also in the clamping seat. The front and rear handles are for adjustment.
