           Choice of winding number counting unit:

           The winding count unit can be selected. The number of turns on the display is composed of 5-digit digital tubes. When the default turn count unit is 0.1 turns, the maximum number of turns that can be set by this controller is 9999.9 turns. When the counting unit is changed to 1 circle, the maximum number of circles can reach 99999 circles

Switching-and-debugging-between-two-programs

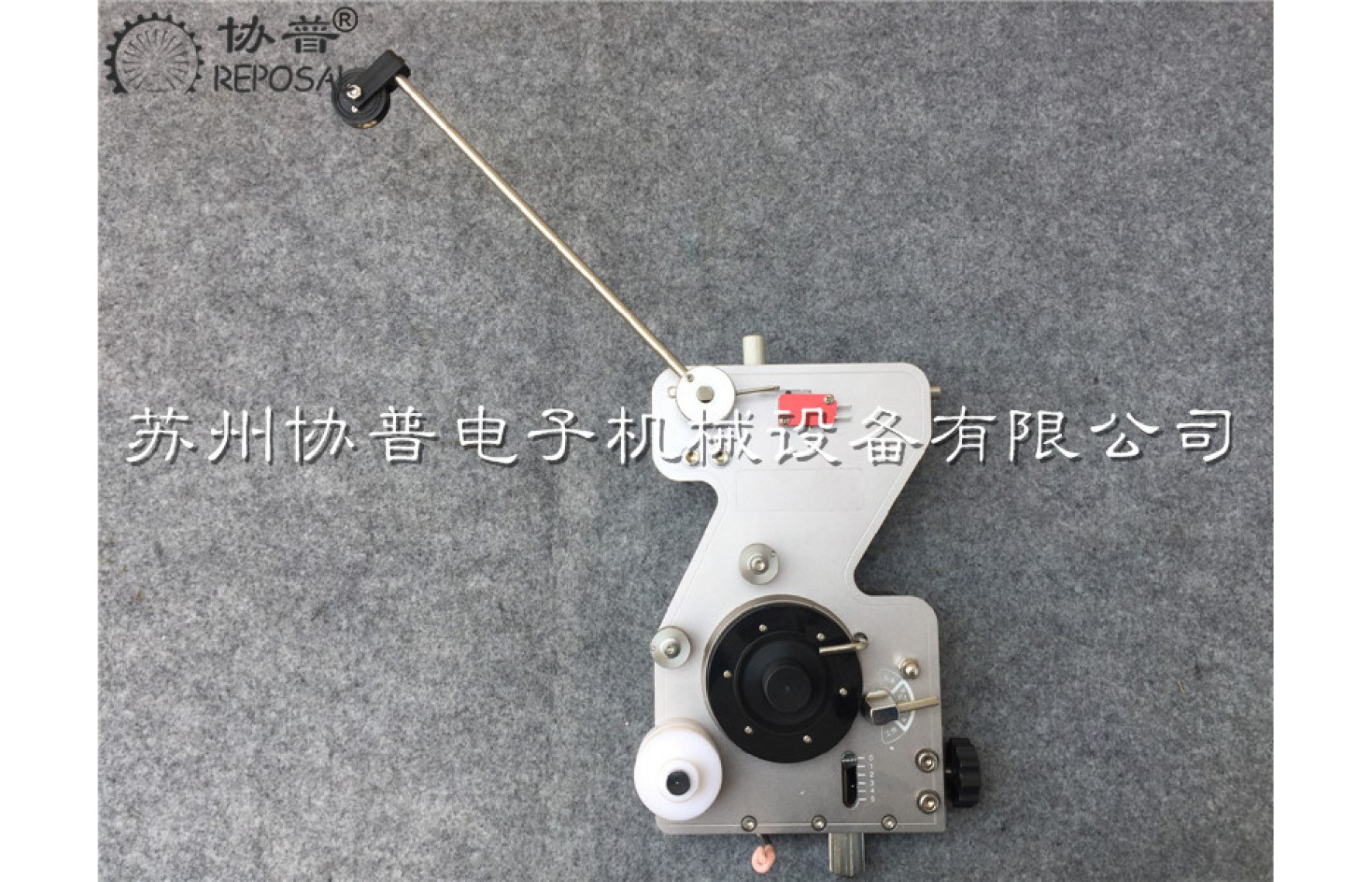

Instructions for use of standard winding machine tensioner

         The company's CNC winding machine supports the storage of 1000 sets of winding process data. After you complete the winding process data of a coil, it will be automatically saved. When you debug the next product, you only need to start the setting from the next program number The parameters are enough. When you need to produce the original product, you can also call it very conveniently. The video below illustrates the storage and recall of the company's winding machine process data.

         Let's introduce the process program of REPOSAL automatic winding machine.

         Store and recall.

         It can be stored in Xiepu's automatic winding machine controller.

         1000 different process procedures.

         How do we switch.

         Press the starting step.

         Press 1 and press enter.

         Then press the end order.

         Press 1 to enter and press to reset.

         Then we set the order by part and press the input.

         We will find that we continue to press enter.

         Press the words after entering.

         It will be set within the scope of Procedure 1.

         Starting point means to start from where.

         We can specify by this arrow.

         We can also enter numbers directly.

         For example, this is 36.5.

         We can enter 37.

         This is the starting point.

         Then we can specify the width for him.

         The width we are talking about is how big the line is.

         Winding back and forth within a range.

         Then we can set his enameled wire diameter.

         For example, the diameter of the enameled wire is 0.4 mm.

           The company's CNC winding machine controller has been continuously improved, with complete functions and stable performance. It can accurately set the main parameters such as starting point, wire diameter, width, high speed, low speed, etc., and also include such as start slow speed, stop Auxiliary parameters such as slow speed, stop at both ends, these commonly used parameters are designed in the user parameter setting area. The following video explains the parameter setting process of our company's CNC winding machine in more detail:

          Now we introduce the setting of process parameters of Xiepu winding machine.

          The controller of Xiepu winding machine is divided into these major functions.

          This part is called the digital parameter area.

          It represents the current state of the machine.

          For example, the red light here corresponds to the standby state.

          It means that this machine is in standby state.

          The following states are running, slowing, positioning, speeding.

          This is a status area to monitor the current status of the machine.

          This is a numeric parameter area.

          The digital parameters need to be some numbers that we need to set.

          at this place.

          This is a switch parameter.

          For example, when the cable direction starts.

          Whether from left to right or right to left.

          This is the cable direction.

          There is also the winding direction.

          For example, when we are standing on the right side of the machine.

          See if the spool is rotating clockwise or counterclockwise.

          Then choose the direction.

          Then there are some special functions.

          For example, parking at both ends, automatic stopping, automatic homing, etc.

          These functions may need to be turned on.

          This is a parameter of the nature of the switch.

          So this is a switch parameter area.

          This part is an editing area.

          It is our numbers and clear, copy, confirm, etc.

          This is in the editing area.

          Then this is an interrupt area outside the interrupt area.

          For example, we need to specify the automatic mode.

          Or retreat, jump, stop, start.

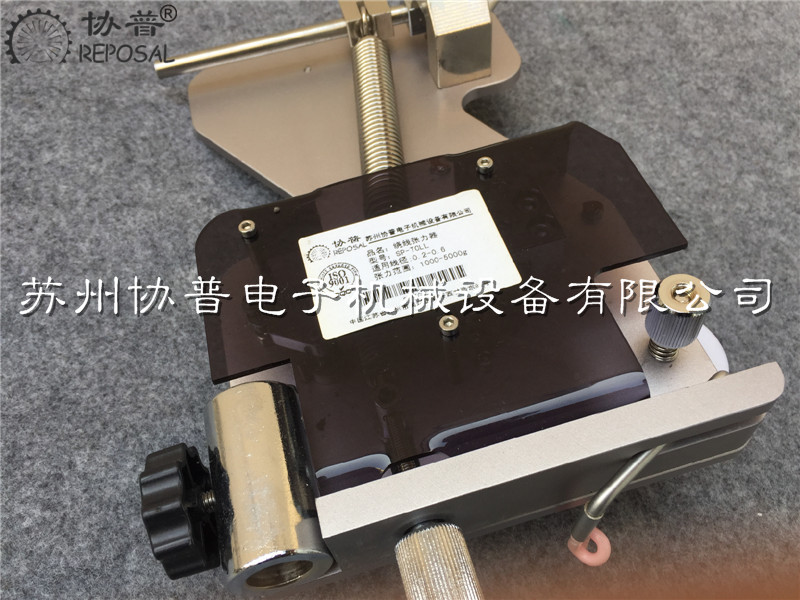

Instructions for use of magnetic damping tensioner for winding machine

Instructions for use of side-sliding transformer winding machine
