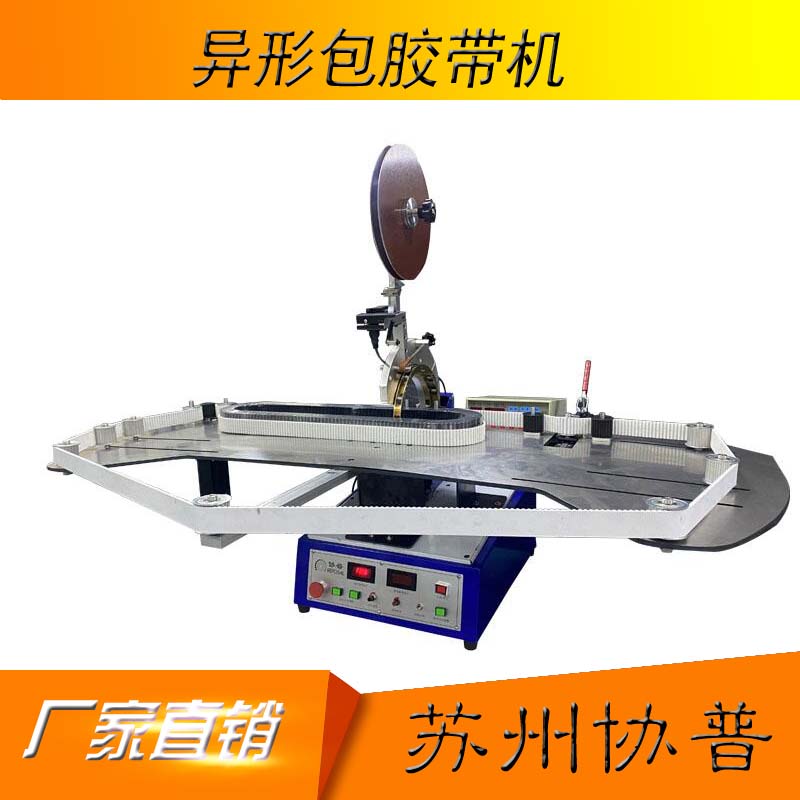

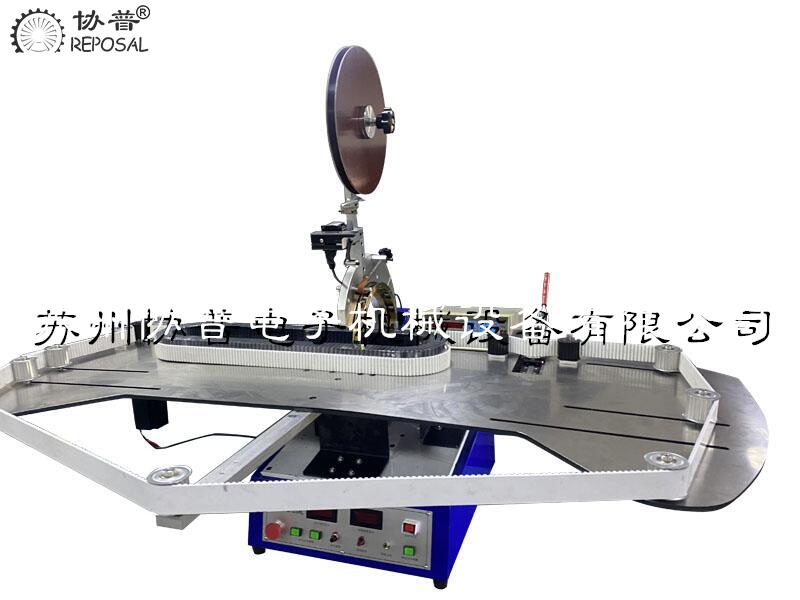

Anomalous shape coil wrapping tape machine SP-DL6920

Features of special-shaped ring tape wrapping machine:

              Special-shaped inner gear high-speed tape wrapping machine is designed for special-shaped closed coil wrapping tape, using synchronous belt drive, suitable for racetrack shape, rectangle, square shape of the shape of the special-shaped closed coil wrapping tape, easy to use, the table is made of stainless steel, loose with high strength fast clip.

             1. Special-shaped inner tooth high speed tape wrapping machine adopts gear and tape ring two in one design, has the characteristics of fast tape wrapping speed, the number of tape storage rings, convenient operation and so on, without affecting

             2. Under the condition of product quality, the efficiency is more than 20 percent higher than the traditional gear type, and the inner diameter is smaller.

             3. Special-shaped ring tape wrapping machine can calculate the length of the required storage tape according to the product size, complete the internal and external diameter, number of turns and other parameters, select the appropriate size of the model.

             4. The same model can be replaced with different widths of the tape ring, in order to meet the different size of product tape storage and complete inside diameter, a wider range of application.

             5. The jig can be adjusted in a wide range, and the clamping products are simple. After changing the rubber wheel of different sizes and adjusting the jig, the products of different sizes can be clamped.

             6. Suitable for tape type is 0.05mn thick PET, JBT, PVC and other materials, smooth, frosted surface without adhesive film and insulation cloth tape, paper tape, etc.

Special-shaped ring tape wrapping machine parameters:

             Minimum finished inner diameter :40mm

             Final height :130mm

             Suitable winding bandwidth :10-12-15-18-20mm

              The maximum length of the product is 800mm

              Diameter of belt ring :300mm

              Maximum speed :330RPM

              Operating voltage :220V\50Hz

              Dimensions :500x600xll60

              Quality of whole machine :200KG
