Precision desktop thick wire winding machine SP-112DP1

Winding machine precision desktop thick wire diameter: SP-112DP1

     SP-112DP1 is mainly suitable for coils with thick diameter of enameled wire, the diameter of enameled wire is between 0.2 and 2mm for the combination of tensioner and winding shaft torque, and the whole winding machine body is designed with aluminum plate welding, the speed range is 25-500RPM, the relative torque is large, and the cost performance is high.

    The precision coil winding machine is mainly used in various skeleton coils and skeletonless coils that are neatly arranged.

    The control algorithm of this specification winding machine is precise and the structural accuracy is high, which is not only suitable for the winding of cylindrical coils, but also has great advantages in the winding precision of disc coils.

    The company can provide other value-added services such as tooling design, skeleton design, process route design and so on according to customer requirements on the basis of this machine.

    The controller adopts a precision CNC winding machine controller and is equipped with a TECO inverter to ensure stable operation.

    Professional controller of winding machine, complete functions, clear hierarchy, simple setting, additional expansion functions, such as deceleration at both ends, parking at both ends, power-off memory and other functions.

    The program can be changed according to the customer's specific requirements to achieve multi-function.

    The power supply circuit adopts an improved anti-interference circuit, which has strong anti-interference ability.

    The winding machine wiring system can adjust the position in time during the winding process, and the wiring is stable and low noise.

    It can store 1000 sets of processing data, and it will not be erased when the power is off, and the storage and call are simple.

    One-piece casting chassis, stable and reliable.

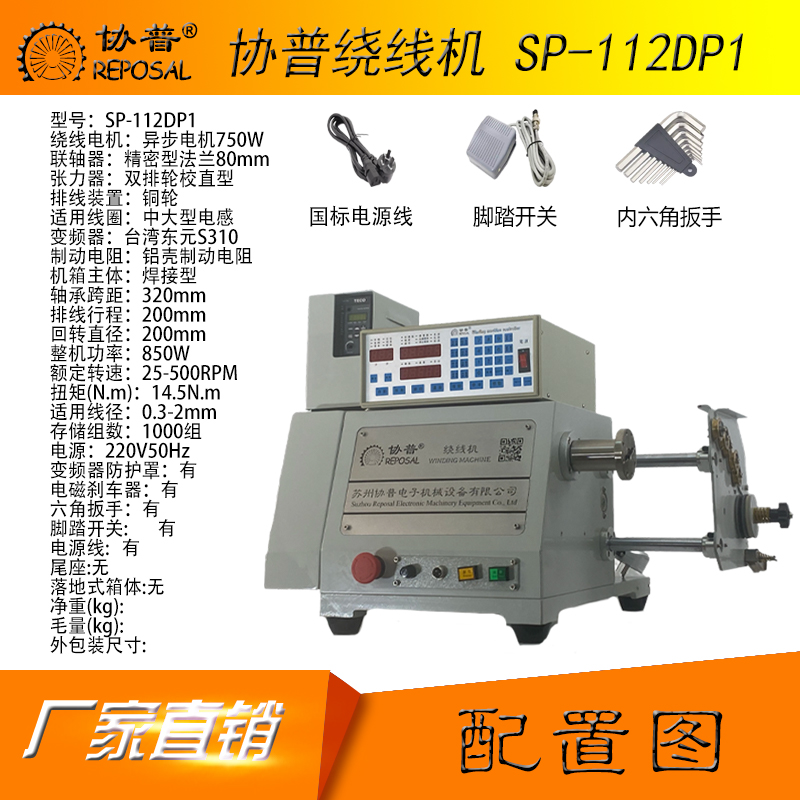

     Equipment name: precision desktop thick wire winding machine SP-112DP1

     Model: SP-112DP1

     Winding motor: asynchronous motor 750W

     Coupling: precision flange 80mm

     Tensioner: double-row wheel straightening type

     Wire arrangement: copper wheel

     Applicable coils: medium and large inductors

     Inverter: Taiwan TECO S310

     Braking resistance: aluminum case braking resistor

     Chassis body: welded type

     Bearing span: 320mm

     Cable stroke: 200mm

     Swing diameter: 200mm

     Power: 850W

     Rated speed: 25-500RPM

     Torque (N.m): 14.5N.m

     Applicable wire diameter: 0.3-2mm

     Number of storage groups: 1,000

     Power supply: 220V50Hz

     Inverter Guard: Yes

     Electromagnetic brakes: Yes

     Hex wrench: Yes

     Footswitch: Yes

     Power Cord: Yes

     Tailstock: None

     Floor-standing cabinet: None

     Net Weight (kg):

     Gross weight(kg):

     Outer packing size:
